Air Heaters, Steam Air Heater Radiator Coils, Thermic Fluid, Hot Water Air Heater Radiators, Finned Tube Heat Exchangers and Finned Heating Coils

Manufacturers of Process Air Heaters (Air Heating Radiator Coils)

Air heaters are required in most process industries for heating the air for tray dryers, fluidized bed dryers, spray dryers, tumble dryers etc.  We design and manufacture air heaters and finned radiator coils wherein the heating media are - saturated steam, hot oil or thermic fluids (heat transfer fluids), hot water including condensates, hot gases - mostly exhaust.

We are manufacturers of industrial air heaters of the following types:

Steam Heated Air Heater Finned Radiator Coils		Saturated steam or Flash steam is used as the heating medium. Saturated steam has a very high condensing coefficient. This coupled with high air side coefficient given by our wire wound tubes results in the best option among fin tubes for steam to air heating.

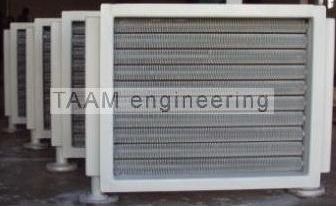

Thermic Fluid Heated Air Heater Radiator Coils		Thermic fluid is used as the heating medium inside the tubes for heating air to temperatures as high as 270 degrees Celsius

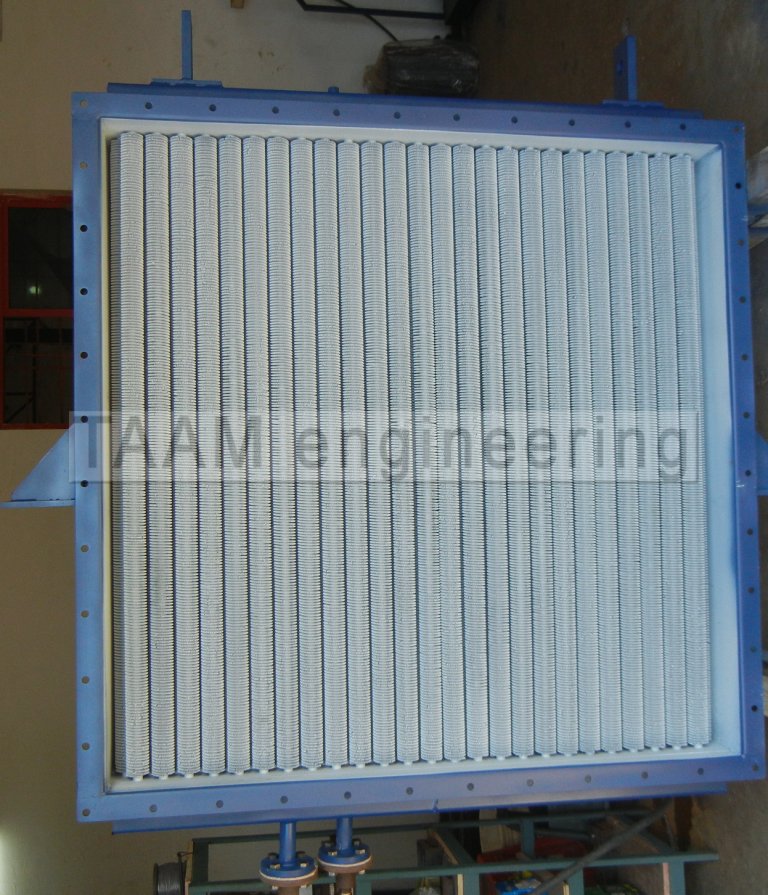

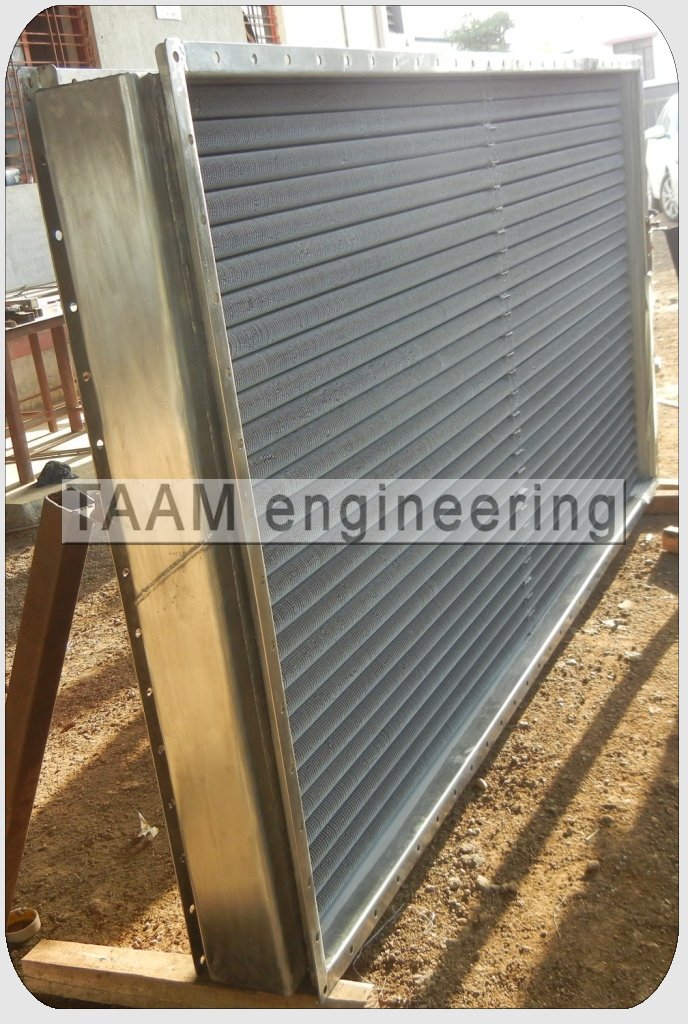

Hot Water Heated Air Heater Radiators, Fin Tube Air Heating Coils		Hot water or condensate is used to heat air to required temperatures.
Air to Air Heat Exchangers Pre Heaters		The exhaust gases or used process air is used to preheat the fresh air using our very compact and efficient air to air heat exchangers. Generally the cost of the heat exchanger is recovered in few months.

Material of Construction For Finned Tube Air Heaters

Tubes - Carbon steel seamless and Stainless steels finned with GI or Stainless steel fins.

Body - Carbon steel and Stainless steel.

Coating - Carbon steel tubes finned with GI or carbon steel fins are grit blasted and coated with Zinc.

Air Heater Design

A good design of an air heater is one that ensures - attainment of the required temperatures even after several years in service coupled with low pressure losses for lower operational costs and compact size. We are chemical engineers with over twenty five years experience in the field of design and manufacture of air heaters. We assure an optimized design with software developed at TAAM. We use lead free solders for applications demanding the same, as in food and pharmaceutical industry.

We manufacture air heaters for the following industries:

• Food Industry - Air Heaters for Tray dryers, spray dryers, conveyer dryers

• Pharmaceutical - Air Heaters for Tray dryers, fluidized bed dryers

• Bulk Drugs - Tray dyers, fluidised bed dryers

• Tea Dryers - Fluidised bed dryers air heaters

• Steel Strip Lines - Radiators for Pickling line, rolling line dryers

• Galvanizing and Coating Lines - Air Heaters

• Sugar - Radiators for Dryers

• Synthetic Fiber - Air Heating Coils for Quench dryers, air to air heat recovery

• Paper and Coated Paper - Live Steam, Flash Steam and Condensate Air Heaters for drying paper and coated paper

• Marine - AHU

• Pigment - Radiators forTray dryers and spray dryers

• Latex - Conveyer dryer Air Heaters

• Soaps and Detergents - Air Heaters for spray dryers, conveyer dryers

• Drying Units for Machine Components - Air Heaters for Tray dryers, ovens, conveyer dryers

TAAM engineering

Indian manufacturers of finned air heater radiator coils
